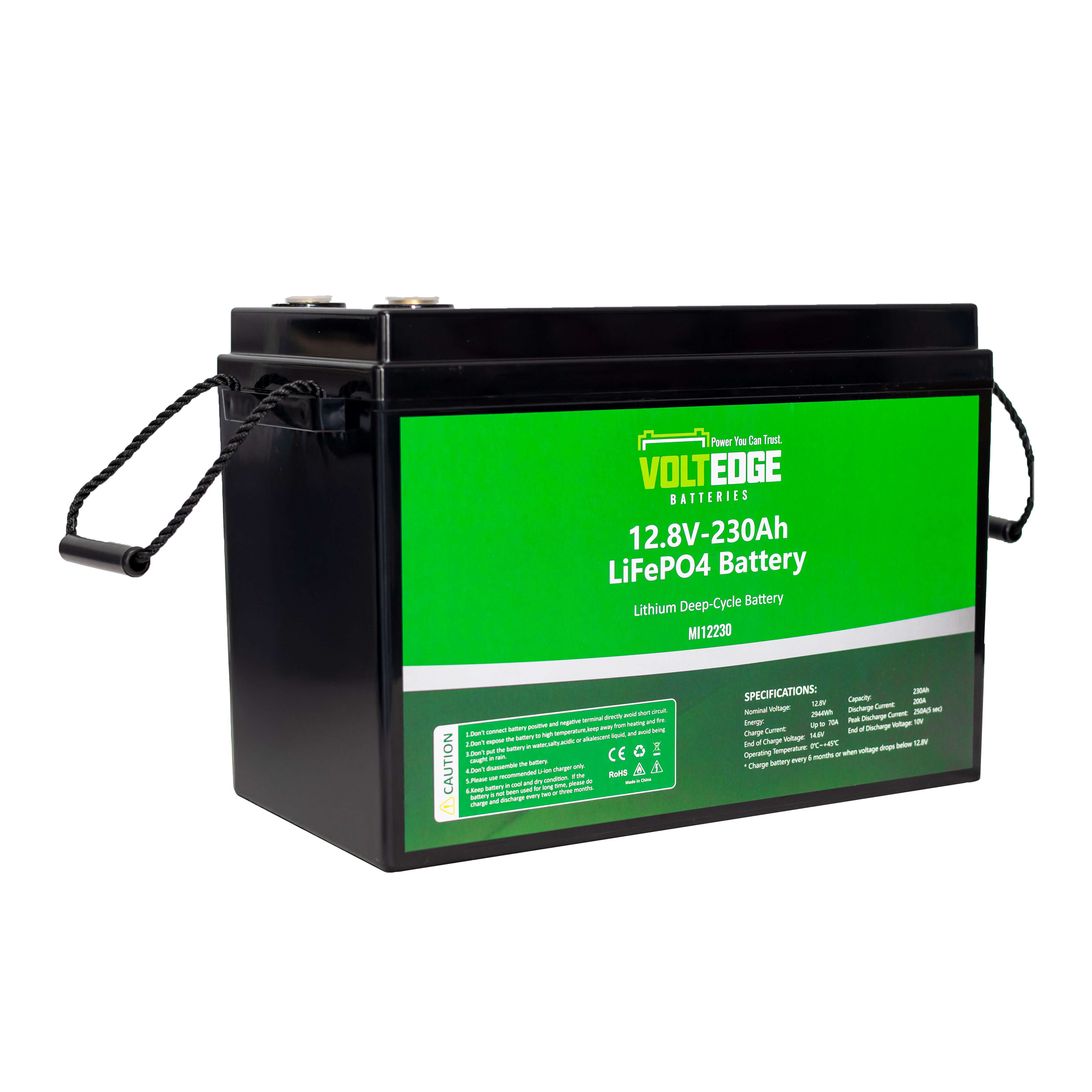

VoltEdge (Lite) 12.8V 230Ah Lithium LiFePO4 Battery

VoltEdge (Lite) 12.8V 230Ah LiFePO₄, Ideal for RV, Marine, 4X4, Solar, and Off-Grid Use.

Why You Need the VoltEdge (Lite) 12.8V 230Ah Lithium

Backed by a Market-Leading 5-Year Full Australian Warranty

Approved in accordance with IEC 62619

• The VoltEdge (Lite) 12.8V 230Ah Lithium  is a powerful, long-lasting LiFePO₄ deep cycle battery, engineered for demanding off-grid, marine, RV, and backup applications. With 2944Wh of energy capacity and a ≥5000-cycle life, it delivers exceptional reliability and endurance.
• Its IP65-rated ABS+PC casing offers durability and protection against dust and water. The 230Ah also features built-in safety mechanisms, climate resistance, and a lightweight design (~21.5 kg) that makes it perfect for portable and fixed energy storage systems.

Key Features

• Battery Type: LiFePO₄
• Voltage/Capacity: 12.8V / 230Ah
• Charge Current: 30A standard / 50A max
• Discharge: 75A standard / 150A max / 200A peak (5s)
• Cycle Life: ≥5000 cycles @ 80% DoD
• Cut-off Voltage: 10V ± 0.2V
• Charge Voltage: 14.6V ± 0.2V
• Temperature Range: 0–45°C (charge), -5–55°C (discharge)
• IP65 protection, M8 terminals, black colour

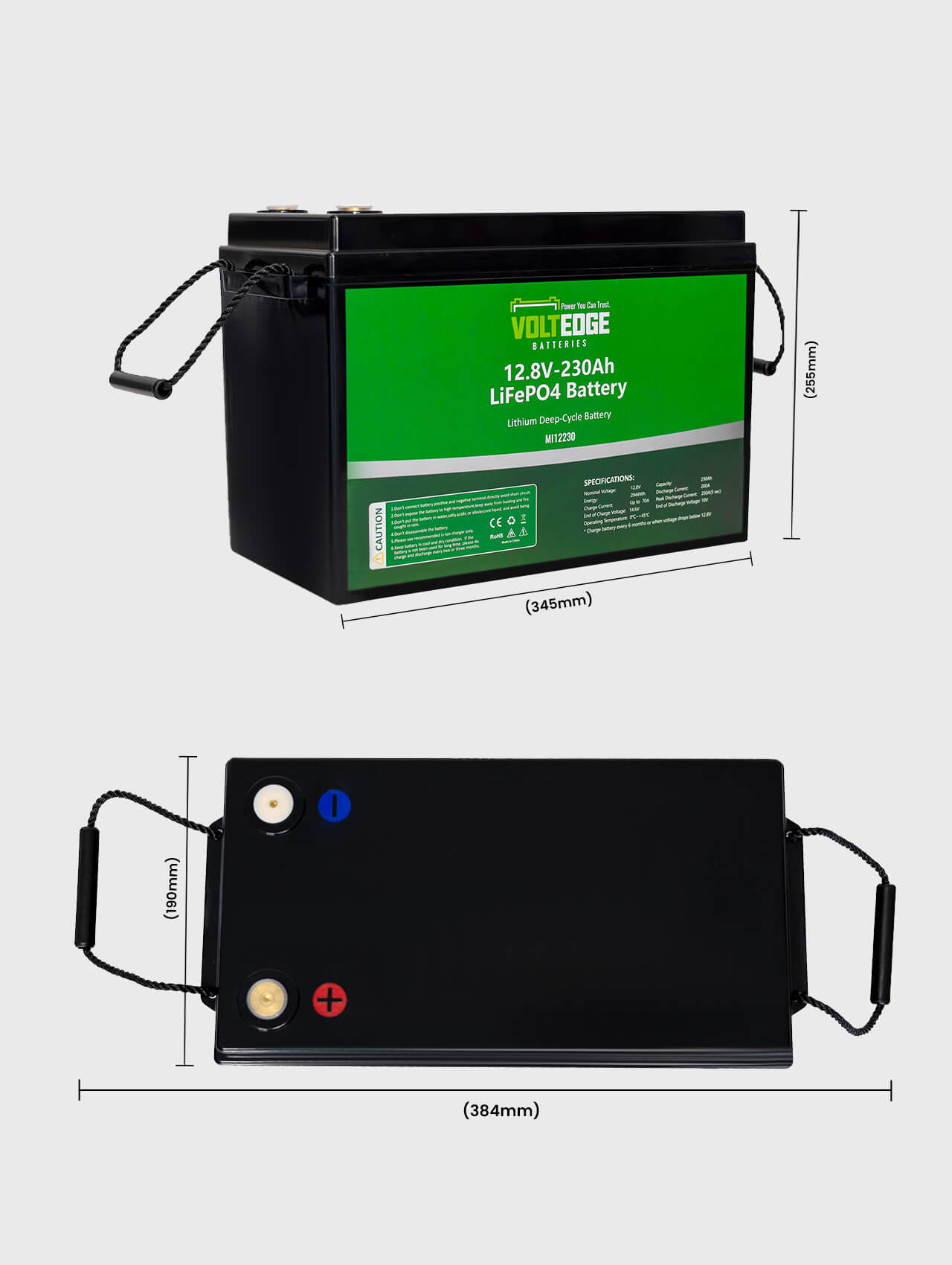

• Dimensions: 345(384 max.)*190(194 max.)*245(255 max.)mm (LxWxH)
• Application: RV, Marine, 4X4, Solar and Camping

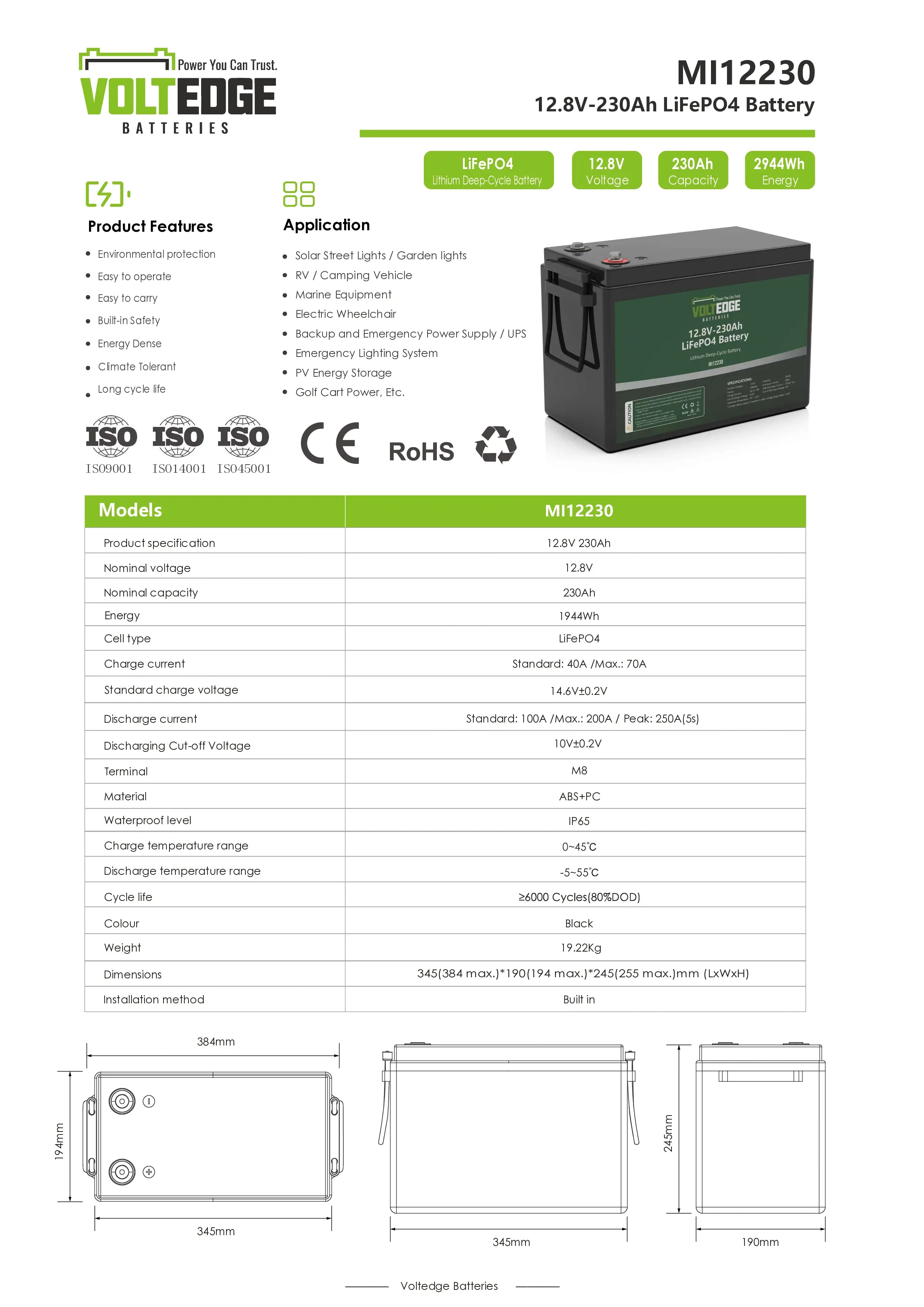

• • Model	(Lite)
    Nominal Voltage	12.8V
    Nominal Capacity	230Ah
    Energy	2944Wh
    Cell Type	LiFePO₄
    Charge Current	Standard: 40A / Max: 70A
    Discharge Current	Standard: 75A / Max: 150A / Peak: 200A (5s)
    Standard Charge Voltage	14.6V ± 0.2V
    Discharging Cut-off Voltage	10V ± 0.2V
    Cycle Life	≥5000 Cycles (80% DoD)
    Charge Temp. Range	0°C to 45°C
    Discharge Temp. Range	-5°C to 55°C
    Terminal	M8
    Material	ABS + PC
    Waterproof Level	IP65
    BMS	150A
    Weight	≈21.5 kg
    Dimensions (L × W × H)	345(384 max.)*190(194 max.)*245(255 max.)mm (LxWxH)
    Bluetooth	None
